AutoForm Engineering GmbH has developed an innovative concept for the design of stamping processes. The so called issues concept allows for a semi-automatic results evaluation which enables engineers to systematically improve their process designs in less time.
The newly developed concept for the design of stamping processes is fully integrated in AutoFormplus R4. The software allows the engineer to focus on the most important criteria relevant for the quality of the stamping and to easily adjust the process parameters in order to achieve a better process design. Each individual area of the simulated stamping is checked and if any result variable within these does not meet the required tolerances and limits, an appropriate issue is generated. The issue is a combination of several result variables and their corresponding tolerances and limits.

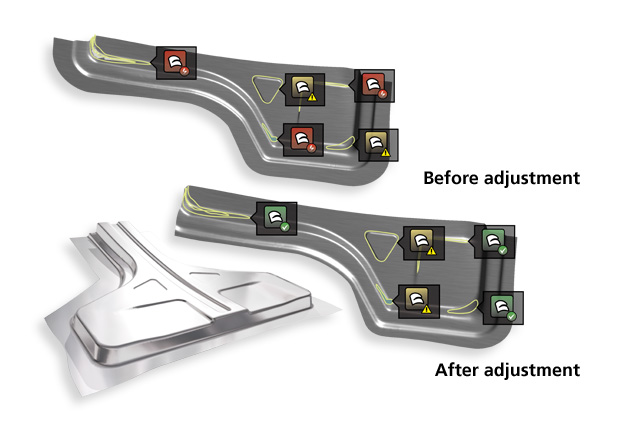

Issues identification: After adjusting stamping process parameters and running a new simulation, the issues indicate whether the forming behavior of a critical area has improved.

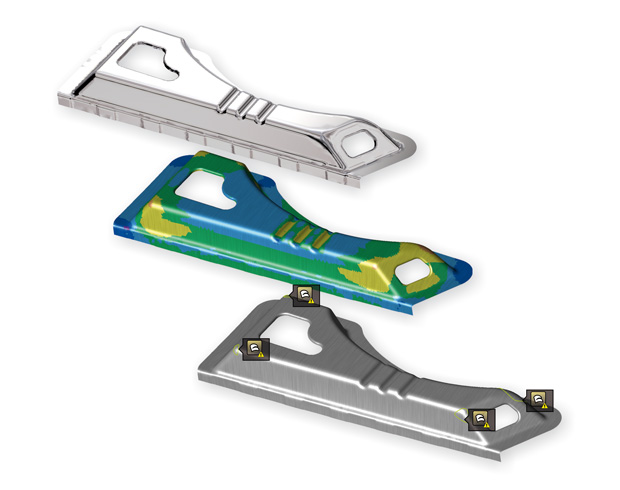

AutoFormplus R4 facilitates and speeds up the identification of stamping issues, their type and their location. The user is led frame-by-frame to critical areas that require attention, which thereby prevents any possible misinterpretations or oversights. Different colors and icons are available for each of the six issue types, namely splits, wrinkles, draw-in, springback, surface and product performance. All identified issues are saved for the next simulation. After adjusting stamping process parameters and running a new simulation, the issues indicate if the process design and hence the stamping quality has improved. The progression of identified issues can be tracked and quickly compared by using synchronized multi-design views.
With AutoFormplus R4, engineers can easily evaluate a process design and avoid misinterpretations or oversights in less time.
Dr. Markus Thomma, Corporate Marketing Director of AutoForm Engineering, stated: “With AutoFormplus R4, we provide an innovative concept for the design of stamping processes. Engineers can now easily evaluate a process design in detail and avoid misinterpretations or oversights in less time. With this new concept, enabling the semi-automatic results evaluation, we remain in line with our customers’ needs and provide them with a new and effective approach for the systematic improvement of their process designs.”
